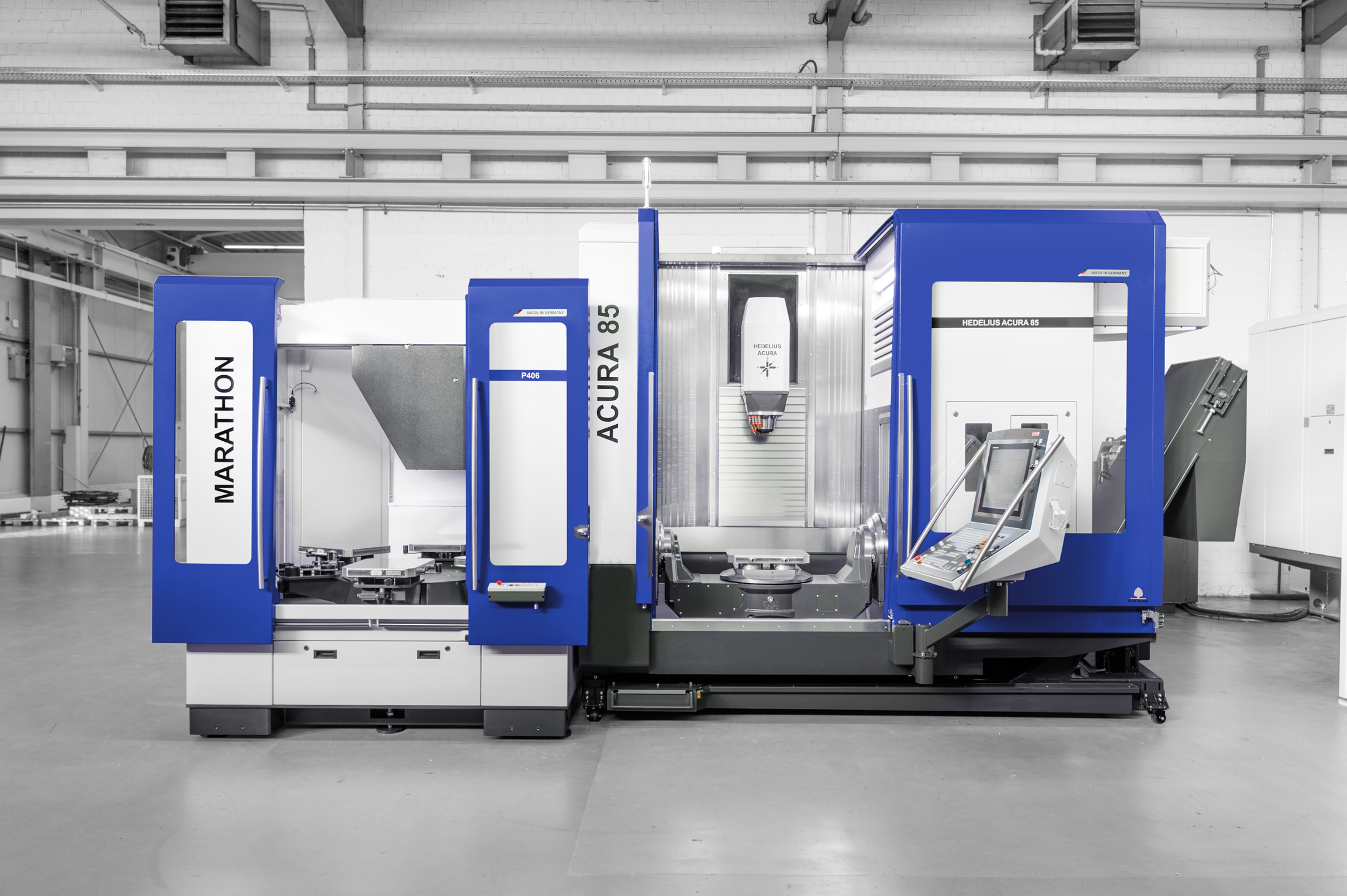

HEDELIUS ACURA 85 WITH 6 PALLETS MARATHON 406 WAREHOUSE

From September 2023 at Douna Machinery in Leeuwarden:

HEDELIUS ACURA 85 5-AXIS CNC MACHINING CENTER
(for extreme precision and accuracy!)

In combination with robotized 6 pallet warehouse HEDELIUS MARATHON P 406
(for 24-hour production in small series!)

Specifications:

5-axis machining center Hedelius ACURA 85 with integrated rotary/swing table, programmable hydraulic narrowing of the swing axis on both sides, programmable hydraulic narrowing of the rotary table,

5-axis CNC control Heidenhain TNC 640*, 50 kW/ 217 Nm,

main drive cooled Celox motor spindle with max. 15,000 min-1 and
no less than 240-fold tool magazine, including 5-axis simultaneous machining.

X-axis : 900 mm.

Y-axis : 850/ 600 mm (table horizontal/table vertical),

Z-axis : 700 mm.

A-axis swivel range : +30° to -115°.

C-axis rotation : +/- 360°.

Turntable dimensions : Ø 850 x 750 mm (Free swing diameter : Ø 900 mm)

Swing range A-axis : +30° to -115° (C-axis rotation range : +/- 360° )

Slew accuracy : < ±10" Jaw weight max : 1.000 kg

With 6 pieces of anodized aluminum pallet 500 x 400 x 48 mm with

Pallet handling system capable of handling 370 kg.

Pressure boosting pump 75 bar.
